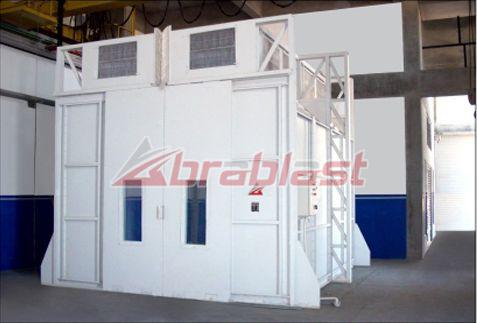

Down Draft Paint Booth

The Vertical Down Draft (the direction fo flow of air is towards the floor of spray booth) Paint Spray booth is suitable for conventional, airless and electrostatic sprya painting and its consists of painting chamber, Inlet Air Filter, Paint Trap Filters, Axial Flow Fan, Electric motor, duct and canopy etc. The design of the paint booth will be of vertical down draft type paint booth with disposable paint trap filters on floor. The intake air tino the paint booth is filtered by intake filter to avoid foreign particle deposition on the pained surface. The intake air is sucked into the room by the extration modules locate on the floor.

Functions:

• Maintains dust level to minimum, prevents spreading of paint and maintains clean air the operators breathing level.
• collects over sprayed paint, solid and discharge solvent fumes outside the building.
• Reduces the fire hazard.
