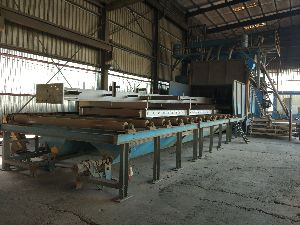

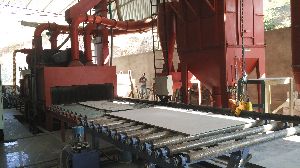

Tunnel Shot Blasting Machines

Tunnel Shot Blasting Machines
Business Type Manufacturer, Exporter, Supplier, Retailer
Features Long functional life
Performance Optimum
Advantage Easy to Operate
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Efficiency
66%
Speciality
Rust resistance
Benefit
Excellent Result

To descale mild steel plate & structurel section prior to painting.

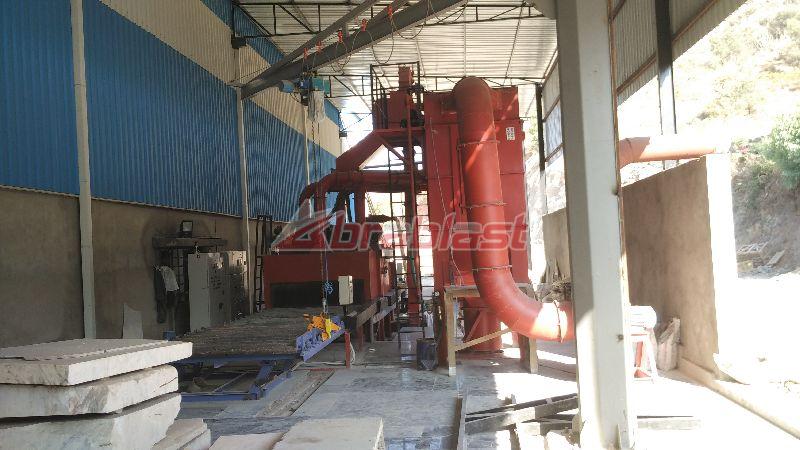

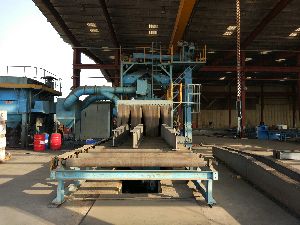

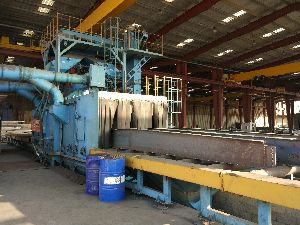

"ABRABLAST" has a wide range of Airless Shot Blasting Machine Tunnel Type With numbers of Blast Wheels to suit the Job Size and according to Productin output required. This is the mostly used to Blast Clean long structural members, channels, angles, gratings, pipe fabricated components etc. for large production output for removing rust and to achieve superior quality (approx. Sa2/Sa2.5 SSPC standaerds) finish after blast cleaning prior to painting.

The opening of the tuunel & required number of blast wheels depends upon the structure of job for attaching homogeneous finish.Major assemblies of the machine are blast wheels for giving high production output, roller conveyor for job conveyoing & media recovery consists of bucket elevetor , screws conveyors , rotary screen separators , abrasive storage hopper etc. & pulse jet type dust collectors is less than 10 miiligram per cubic meter.

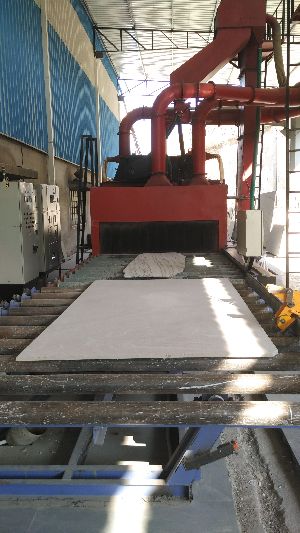

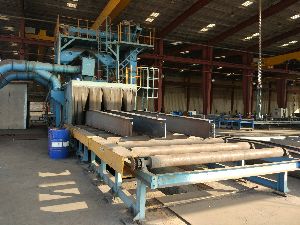

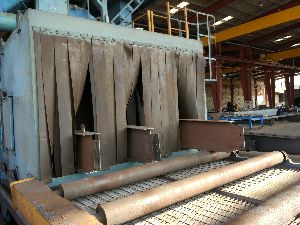

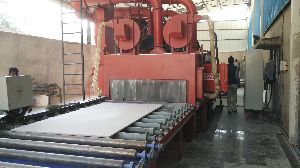

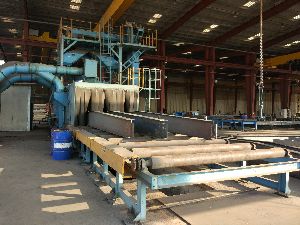

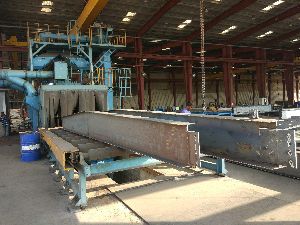

the works pieses is to be placed as far as possible in the centre of the guides of rolers on in feed conveyor when the rollers are not in rotating. The possition of work pieses is in such a way that it can rolled easily hrizontal as shown in phtograph , to avoid the accumulation of shots . After then it passes throgh entry vestibule tunnel and then enters into the blasting chambner for blast clean process . If the prefabricated structure can not be rolled on the rollers then it has to be kept either on predesinged fixture or a trya enabling it to travel & pass through the blast cabinet.

Blast wheel stations are aranged strategically around and located on the top of cabinet propels abrasive on the rolling works pieces. The blower arrangment continuely blow- off abrasive accumlated on the top side of the work piece . After shot blasted homogeneously finished all around air washed work pieces rolls out from exit vestibules tunnel to the out feed conveyor rollers , from where it is to be unloaded manually . The operatons of squence is details programmed for ease of operaton and to achive the required performance.





Tunnel Type Shot Blasting Machine



  • Ex-works Price – 15.0 Lac To 20.0 Lac

  • Processing Time – 8 Week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 2 Nos



Stone Shot Blasting Machine



  • Ex-works Price – 12.0 To 18.0 Lac

  • Processing Time – 5-6 Week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 2 Nos



Structure Shot Blasting Machine



  • Ex-works Price – 30.0 Lac To 45.0 Lac

  • Processing Time – 48week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 3 Nos



Paver Block Shot Blasting Machine



  • Ex-works Price – 8.0 Lac To 12.0 Lac

  • Processing Time – 4 Week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 4 Nos



Rod Bar Cleaning Shot Blasting Machine



  • Ex-works Price – 15.0 Lac To 16.0 Lac

  • Processing Time – 5-6 Week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 2 Nos



Pipe Cleaning Shot Blasting Machine



  • Ex-works Price – 14.0 Lac To 16.0 Lac

  • Processing Time – 6 Week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 3 Nos



Fabricated Structure Shot Blasting Machine



  • Ex-works Price – 25.0 Lac To 35 Lac

  • Processing Time – 7-8 Week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 2 Nos



Stone Texuring Shot Blasting  Machine



  • Ex-works Price – 13.0 Lac To 15.0 Lac

  • Processing Time – 4 Week

  • Minimum Order Qty – 1

  • Supply Ability Per Month – 3 Nos
